Superfine Grinding Locknuts

Please select

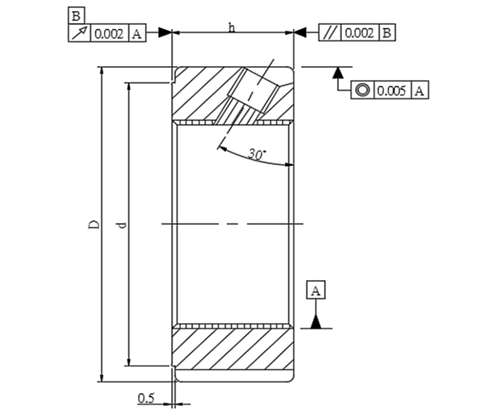

SGL-F

SGL-F

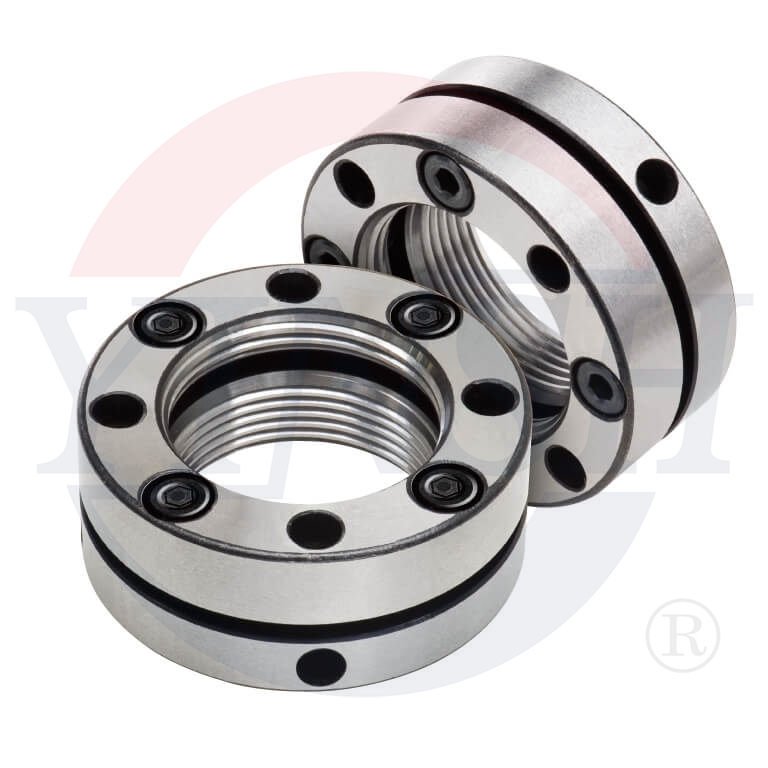

SGL-F Flank Locking. The SGL-F Series locknuts employ 30°, 3 point locking. The outstanding design of the brass threads are perfectly matched and prevent any loosening whatsoever. 30° design locking screws also reduce torque on this product. Clamping rims, trailing rims, and outer skirts are all precision ground to conform to the high precision requirements of high rpms.

More
  • Material Composition:SCM440(42CrMo4)

  • Hardness:HRC28° ~32°

  • Thread Precision:ISO 4H

  • Parallelism: 0.002mm

  • Run Out:0.002mm

  • Concentricity:0.005mm



SGL-F SGL-F
Thread D h d n-t x g m MAX Nm CAD Download
SGL-F M14 x 1.5 30 14 25 3 - 4 x 2 M5 4.5 x_t
SGL-F M15 x 1 30 14 25 3 - 4 x 2 M5 4.5 x_t
SGL-F M16 x 1.5 30 14 25 3 - 4 x 2 M5 4.5 x_t
SGL-F M17 x 1 32 16 27 3 - 4 x 2 M5 4.5 x_t
SGL-F M18 x 1.5 32 16 27 3 - 4 x 2 M5 4.5 x_t
SGL-F M20 x 1 38 16 33 3 - 4 x 2 M6 4.5 x_t
SGL-F M20 x 1.5 38 16 33 3 - 4 x 2 M6 8.0 x_t
SGL-F M22 x 1.5 38 16 33 3 - 4 x 2 M6 8.0 x_t
SGL-F M24 x 1.5 38 18 33 3 - 5 x 2 M6 8.0 x_t
SGL-F M25 x 1.5 38 18 33 3 - 5 x 2 M6 8.0 x_t
SGL-F M27 x 1.5 40 18 35 3 - 5 x 2 M6 8.0 x_t
SGL-F M30 x 1.5 45 18 40 3 - 5 x 2 M6 8.0 x_t
SGL-F M33 x 1.5 50 18 45 3 - 5 x 2 M6 8.0 x_t
SGL-F M35 x 1.5 52 18 47 3 - 5 x 2 M8 18.0 x_t
SGL-F M36 x 1.5 52 18 47 3 - 5 x 2 M8 18.0 x_t
SGL-F M39 x 1.5 58 20 52 3 - 6 x 2.5 M8 18.0 x_t
SGL-F M40 x 1.5 58 20 52 3 - 6 x 2.5 M8 18.0 x_t
SGL-F M42 x 1.5 62 20 56 3 - 6 x 2.5 M8 18.0 x_t
SGL-F M45 x 1.5 65 20 59 3 - 6 x 2.5 M8 18.0 x_t
SGL-F M48 x 1.5 70 20 64 3 - 6 x 2.5 M8 18.0 x_t
SGL-F M50 x 1.5 70 20 64 3 - 6 x 2.5 M8 18.0 x_t
SGL-F M52 x 1.5 73 22 66 3 - 7 x 3 M8 18.0 x_t
SGL-F M55 x 2 75 22 68 3 - 7 x 3 M8 18.0 x_t
SGL-F M56 x 2 75 22 68 3 - 7 x 3 M8 18.0 x_t
SGL-F M60 x 2 80 22 73 3 - 7 x 3 M8 18.0 x_t
SGL-F M64 x 2 85 22 78 3 - 7 x 3 M8 18.0 x_t
SGL-F M65 x 2 85 22 78 3 - 7 x 3 M8 18.0 x_t
SGL-F M68 x 2 92 24 84 3 - 8 x 3.5 M8 18.0 x_t
SGL-F M70 x 2 92 24 84 3 - 8 x 3.5 M8 18.0 x_t
SGL-F M72 x 2 94 24 86 3 - 8 x 3.5 M8 18.0 x_t
SGL-F M75 x 2 98 24 90 3 - 8 x 3.5 M8 18.0 x_t
SGL-F M76 x 2 98 24 90 3 - 8 x 3.5 M8 18.0 x_t
SGL-F M80 x 2 105 24 96 3 - 8 x 3.5 M8 18.0 x_t
SGL-F M85 x 2 110 24 102 6 - 8 x 3.5 M8 18.0 x_t
SGL-F M90 x 2 120 26 108 6 - 10 x 4 M8 18.0 x_t
SGL-F M95 x 2 125 26 113 6 - 10 x 4 M8 18.0 x_t
SGL-F M100 x 2 130 26 118 6 - 10 x 4 M8 18.0 x_t
SGL-F M105 x 2 140 28 125 6 - 10 x 4 M10 35.0 x_t
SGL-F M110 x 2 145 28 132 6 - 10 x 4 M10 35.0 x_t
SGL-F M115 x 2 150 28 137 6 - 10 x 4 M10 35.0 x_t
SGL-F M120 x 2 155 30 142 6 - 12 x 5 M10 35.0 x_t
SGL-F M125 x 2 160 30 147 6 - 12 x 5 M10 35.0 x_t
SGL-F M130 x 2 165 30 152 6 - 12 x 5 M10 35.0 x_t
SGL-F M135 x 2 175 32 160 6 - 12 x 5 M10 35.0 x_t
SGL-F M140 x 2 180 32 165 6 - 12 x 5 M10 35.0 x_t
SGL-F M145 x 2 190 32 175 6 - 12 x 5 M10 35.0 x_t
SGL-F M150 x 2 195 32 180 6 - 12 x 5 M10 35.0 x_t
SGL-F M155 x 3 200 34 180 6 - 14 x 6 M10 35.0 x_t
SGL-F M160 x 3 210 34 190 6 - 14 x 6 M10 35.0 x_t
SGL-F M165 x 3 210 34 190 6 - 14 x 6 M10 35.0 x_t
SGL-F M170 x 3 220 34 200 6 - 14 x 6 M10 35.0 x_t
SGL-F M180 x 3 230 36 205 6 - 16 x 7 M12 60.0 x_t
SGL-F M190 x 3 240 36 215 6 - 16 x 7 M12 60.0 x_t
SGL-F M200 x 3 250 38 225 6 - 16 x 7 M12 60.0 x_t

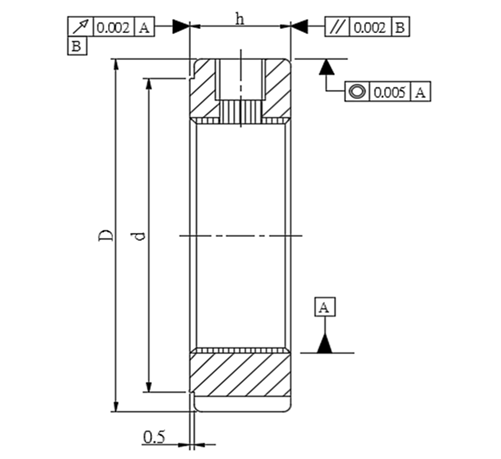

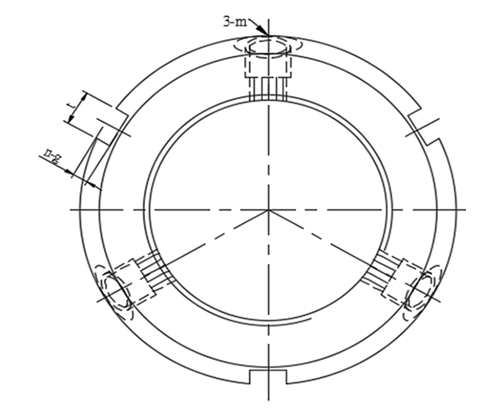

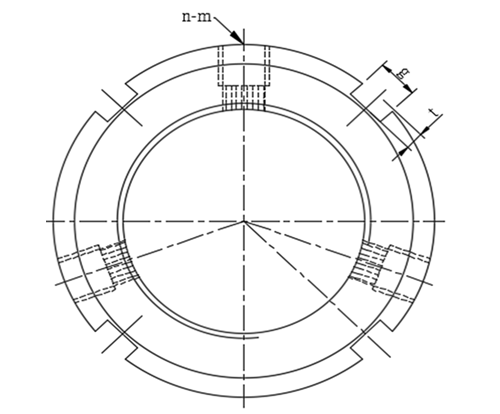

SGL-R

SGL-R

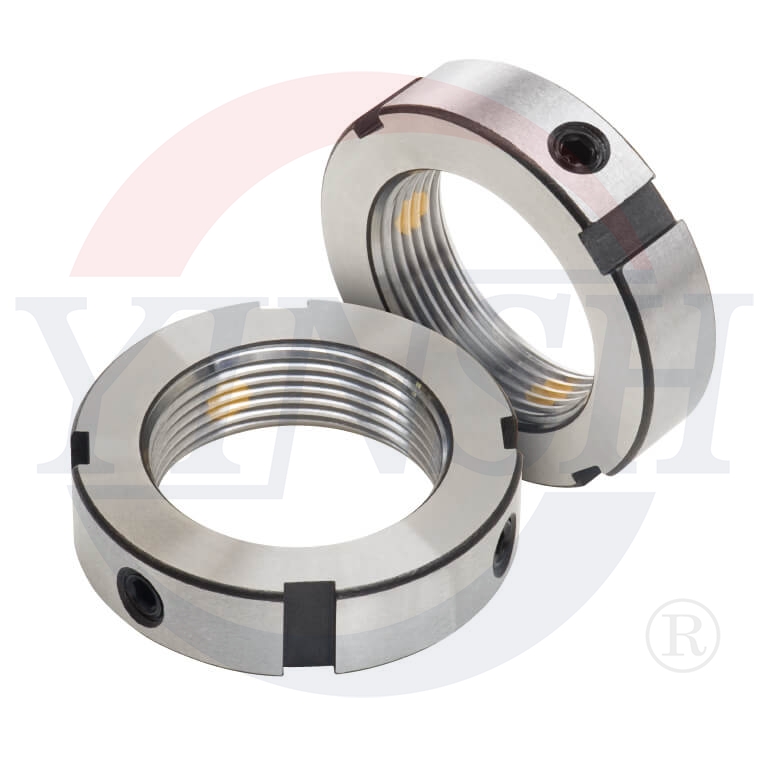

SGL-R Radial Locking. The SGL-R Series Locknuts employ 3-way radial locking. Thickness is comparatively thinner than other products. This series is especially applicable for use when locknut space is limited. Aside from where other products are not usable due to space restrictions, locknut threads, clamping rims, trailing rims, and outer skirts are all precision ground to conform to the high precision requirements of high rpms.

More
  • Material Composition:SCM440(42CrMo4)

  • Hardness:HRC28° ~32°

  • Thread Precision:ISO 4H

  • Parallelism: 0.002mm

  • Run Out:0.002mm

  • Concentricity:0.005mm



SGL-R SGL-R
Thread D h g t d n - m MAX Nm CAD Download
SGL-R M8 x 0.75 16 8 3 2 11 2 - M4 3.5 x_t
SGL-R M10 x 0.75 18 8 3 2 13 2 - M4 3.5 x_t
SGL-R M10 x 1 18 8 3 2 13 2 - M4 3.5 x_t
SGL-R M12 x 1 20 8 3 2 15 2 - M4 3.5 x_t
SGL-R M12 x 1.25 20 8 3 2 15 2 - M4 3.5 x_t
SGL-R M14 x 1.5 25 8 3 2 20 2 - M4 3.5 x_t
SGL-R M15 x 1 25 8 3 2 20 2 - M4 3.5 x_t
SGL-R M16 x 1.5 28 10 4 2 23 2 - M5 4.5 x_t
SGL-R M17 x 1 28 10 4 2 23 2 - M5 4.5 x_t
SGL-R M18 x 1.5 30 10 4 2 25 2 - M5 4.5 x_t
SGL-R M20 x 1 32 10 4 2 27 3 - M5 4.5 x_t
SGL-R M20 x 1.5 32 10 4 2 27 3 - M5 4.5 x_t
SGL-R M22 x 1.5 35 10 4 2 30 3 - M5 4.5 x_t
SGL-R M24 x 1.5 38 12 5 2 33 3 - M6 8.0 x_t
SGL-R M25 x 1.5 38 12 5 2 33 3 - M6 8.0 x_t
SGL-R M27 x 1.5 42 12 5 2 37 3 - M6 8.0 x_t
SGL-R M30 x 1.5 45 12 5 2 40 3 - M6 8.0 x_t
SGL-R M33 x 1.5 52 12 5 2 45 3 - M6 8.0 x_t
SGL-R M35 x 1.5 52 12 5 2 47 3 - M6 8.0 x_t
SGL-R M36 x 1.5 55 14 6 2.5 49 3 - M6 8.0 x_t
SGL-R M39 x 1.5 58 14 6 2.5 52 3 - M6 8.0 x_t
SGL-R M40 x 1.5 58 14 6 2.5 52 3 - M6 8.0 x_t
SGL-R M42 x 1.5 62 14 6 2.5 56 3 - M6 8.0 x_t
SGL-R M45 x 1.5 65 14 6 2.5 59 3 - M6 8.0 x_t
SGL-R M48 x 1.5 68 14 6 2.5 62 3 - M6 8.0 x_t
SGL-R M50 x 1.5 70 14 6 2.5 64 3 - M8 18.0 x_t
SGL-R M52 x 1.5 73 16 7 3 66 3 - M8 18.0 x_t
SGL-R M55 x 2 75 16 7 3 68 3 - M8 18.0 x_t
SGL-R M56 x 2 77 16 7 3 70 3 - M8 18.0 x_t
SGL-R M60 x 2 80 16 7 3 73 3 - M8 18.0 x_t
SGL-R M64 x 2 85 16 7 3 78 3 - M8 18.0 x_t
SGL-R M65 x 2 85 16 7 3 78 3 - M8 18.0 x_t
SGL-R M68 x 2 92 18 8 3.5 84 3 - M8 18.0 x_t
SGL-R M70 x 2 92 18 8 3.5 84 3 - M8 18.0 x_t
SGL-R M72 x 2 95 18 8 3.5 86 3 - M8 18.0 x_t
SGL-R M75 x 2 98 18 8 3.5 90 3 - M8 18.0 x_t
SGL-R M76 x 2 100 18 8 3.5 92 3 - M8 18.0 x_t
SGL-R M80 x 2 105 18 8 3.5 96 3 - M8 18.0 x_t
SGL-R M85 x 2 110 18 8 3.5 102 3 - M8 18.0 x_t
SGL-R M90 x 2 120 20 10 4 108 3 - M8 18.0 x_t
SGL-R M95 x 2 125 20 10 4 113 3 - M8 18.0 x_t
SGL-R M100 x 2 130 20 10 4 118 3 - M8 18.0 x_t
SGL-R M105 x 2 140 22 12 5 125 3 - M8 18.0 x_t
SGL-R M110 x 2 145 22 12 5 132 3 - M8 18.0 x_t
SGL-R M115 x 2 150 22 12 5 137 3 - M8 18.0 x_t
SGL-R M120 x 2 155 24 12 5 142 3 - M8 18.0 x_t
SGL-R M125 x 2 160 24 12 5 147 3 - M8 18.0 x_t
SGL-R M130 x 2 165 24 12 5 152 3 - M8 18.0 x_t
SGL-R M135 x 2 175 26 14 6 160 3 - M10 35.0 x_t
SGL-R M140 x 2 180 26 14 6 165 3 - M10 35.0 x_t
SGL-R M145 x 2 190 26 14 6 175 3 - M10 35.0 x_t
SGL-R M150 x 2 195 26 14 6 180 3 - M10 35.0 x_t
SGL-R M155 x 3 200 28 16 7 180 3 - M10 35.0 x_t
SGL-R M160 x 3 210 28 16 7 190 3 - M10 35.0 x_t
SGL-R M165 x 3 210 28 16 7 190 3 - M10 35.0 x_t
SGL-R M170 x 3 220 28 16 7 200 3 - M10 35.0 x_t
SGL-R M180 x 3 230 30 18 8 205 3 - M12 60.0 x_t
SGL-R M190 x 3 240 30 18 8 215 3 - M12 60.0 x_t
SGL-R M200 x 3 250 32 18 8 225 3 - M12 60.0 x_t

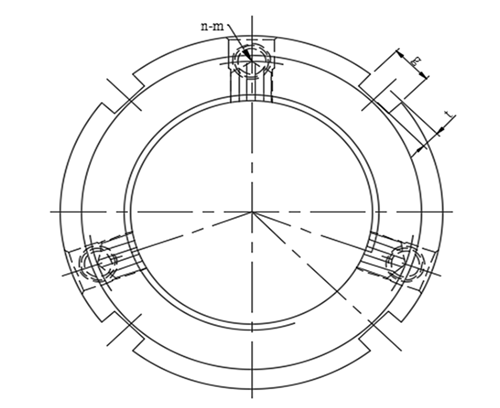

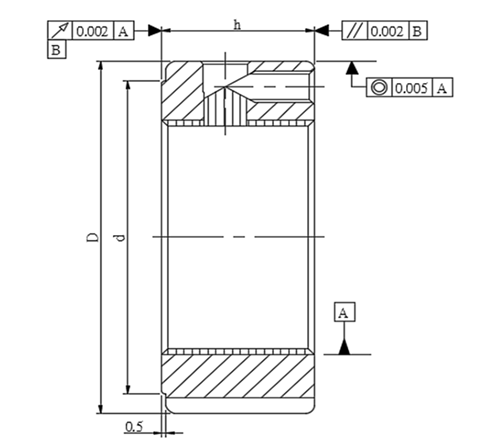

SGL-A

SGL-A

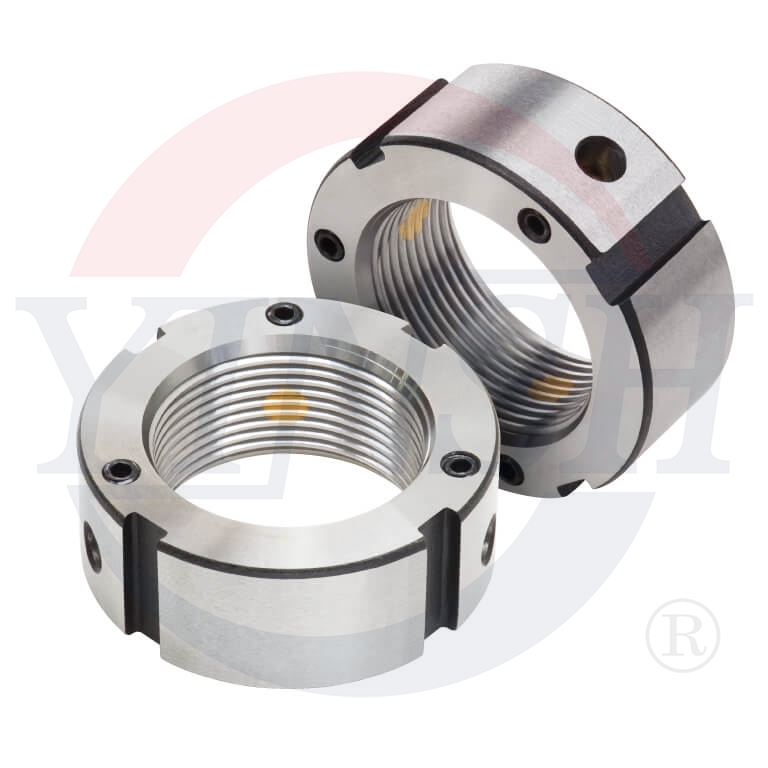

SGL-A Axial Locking. This locknut employs 3 way axial locking with the same thickness as the SGL-F series. 3 way axial locking is especially applicable to assembly work within special space constraints. Locknut threads, clamping rims, trailing rims, and outer skirts are all precision ground to conform to the high precision requirements of high rpms.

More
  • Material Composition:SCM440(42CrMo4)

  • Hardness:HRC28° ~32°

  • Thread Precision:ISO 4H

  • Parallelism: 0.002mm

  • Run Out:0.002mm

  • Concentricity:0.005mm



SGL-A SGL-A
Thread D h g t d n - m MAX Nm CAD Download
SGL-A M14 x 1.5 30 14 4 2 25 2 - M4 3.5 x_t
SGL-A M15 x 1 30 14 4 2 25 2 - M4 3.5 x_t
SGL-A M16 x 1.5 30 14 4 2 25 2 - M4 3.5 x_t
SGL-A M17 x 1 32 16 4 2 27 2 - M4 3.5 x_t
SGL-A M18 x 1.5 32 16 4 2 27 3 - M4 3.5 x_t
SGL-A M20 x 1 38 16 4 2 33 3 - M4 3.5 x_t
SGL-A M20 x 1.5 38 16 4 2 33 3 - M4 3.5 x_t
SGL-A M22 x 1.5 38 16 4 2 33 3 - M4 3.5 x_t
SGL-A M24 x 1.5 38 18 5 2 33 3 - M4 3.5 x_t
SGL-A M25 x 1.5 38 18 5 2 33 3 - M4 3.5 x_t
SGL-A M27 x 1.5 40 18 5 2 35 3 - M4 3.5 x_t
SGL-A M30 x 1.5 45 18 5 2 40 3 - M4 3.5 x_t
SGL-A M33 x 1.5 50 18 5 2 45 3 - M4 3.5 x_t
SGL-A M35 x 1.5 52 18 5 2 47 3 - M6 8.0 x_t
SGL-A M36 x 1.5 52 18 5 2 47 3 - M6 8.0 x_t
SGL-A M39 x 1.5 58 20 6 2.5 52 3 - M6 8.0 x_t
SGL-A M40 x 1.5 58 20 6 2.5 52 3 - M6 8.0 x_t
SGL-A M42 x 1.5 62 20 6 2.5 56 3 - M6 8.0 x_t
SGL-A M45 x 1.5 65 20 6 2.5 59 3 - M6 8.0 x_t
SGL-A M48 x 1.5 70 20 6 2.5 64 3 - M6 8.0 x_t
SGL-A M50 x 1.5 70 20 6 2.5 64 3 - M6 8.0 x_t
SGL-A M52 x 1.5 73 22 7 3 66 3 - M6 8.0 x_t
SGL-A M55 x 2 75 22 7 3 68 3 - M6 8.0 x_t
SGL-A M56 x 2 75 22 7 3 68 3 - M6 8.0 x_t
SGL-A M60 x 2 80 22 7 3 73 3 - M6 8.0 x_t
SGL-A M64 x 2 85 22 7 3 78 3 - M6 8.0 x_t
SGL-A M65 x 2 85 22 7 3 78 3 - M6 8.0 x_t
SGL-A M68 x 2 92 24 8 3.5 84 3 - M8 18.0 x_t
SGL-A M70 x 2 92 24 8 3.5 84 3 - M8 18.0 x_t
SGL-A M72 x 2 94 24 8 3.5 86 3 - M8 18.0 x_t
SGL-A M75 x 2 98 24 8 3.5 90 3 - M8 18.0 x_t
SGL-A M76 x 2 98 24 8 3.5 90 3 - M8 18.0 x_t
SGL-A M80 x 2 105 24 8 3.5 96 3 - M8 18.0 x_t
SGL-A M85 x 2 110 24 8 3.5 102 3 - M8 18.0 x_t
SGL-A M90 x 2 120 26 10 4 108 3 - M8 18.0 x_t
SGL-A M95 x 2 125 26 10 4 113 3 - M8 18.0 x_t
SGL-A M100 x 2 130 26 10 4 118 3 - M8 18.0 x_t
SGL-A M105 x 2 140 28 12 5 125 3 - M8 18.0 x_t
SGL-A M110 x 2 145 28 12 5 132 3 - M8 18.0 x_t
SGL-A M115 x 2 150 28 12 5 137 3 - M8 18.0 x_t
SGL-A M120 x 2 155 30 12 5 142 3 - M8 18.0 x_t
SGL-A M125 x 2 160 30 12 5 147 3 - M8 18.0 x_t
SGL-A M130 x 2 165 30 12 5 152 3 - M8 18.0 x_t
SGL-A M135 x 2 175 32 14 6 160 3 - M10 35.0 x_t
SGL-A M140 x 2 180 32 14 6 165 3 - M10 35.0 x_t
SGL-A M145 x 2 190 32 14 6 175 3 - M10 35.0 x_t
SGL-A M150 x 2 195 32 14 6 180 3 - M10 35.0 x_t
SGL-A M155 x 3 200 34 16 7 180 3 - M10 35.0 x_t
SGL-A M160 x 3 210 34 16 7 190 3 - M10 35.0 x_t
SGL-A M165 x 3 210 34 16 7 190 3 - M10 35.0 x_t
SGL-A M170 x 3 220 34 16 7 200 3 - M10 35.0 x_t
SGL-A M180 x 3 230 36 18 8 205 3 - M12 60.0 x_t
SGL-A M190 x 3 240 36 18 8 215 3 - M12 60.0 x_t
SGL-A M200 x 3 250 38 18 8 225 3 - M12 60.0 x_t

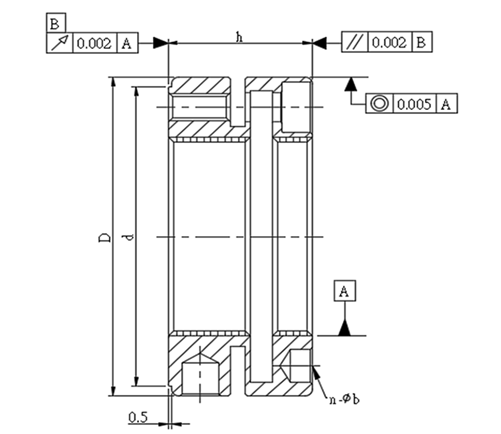

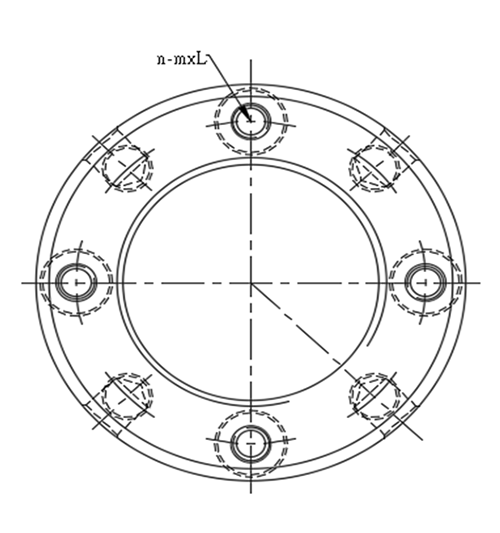

SGL-K

SGL-K

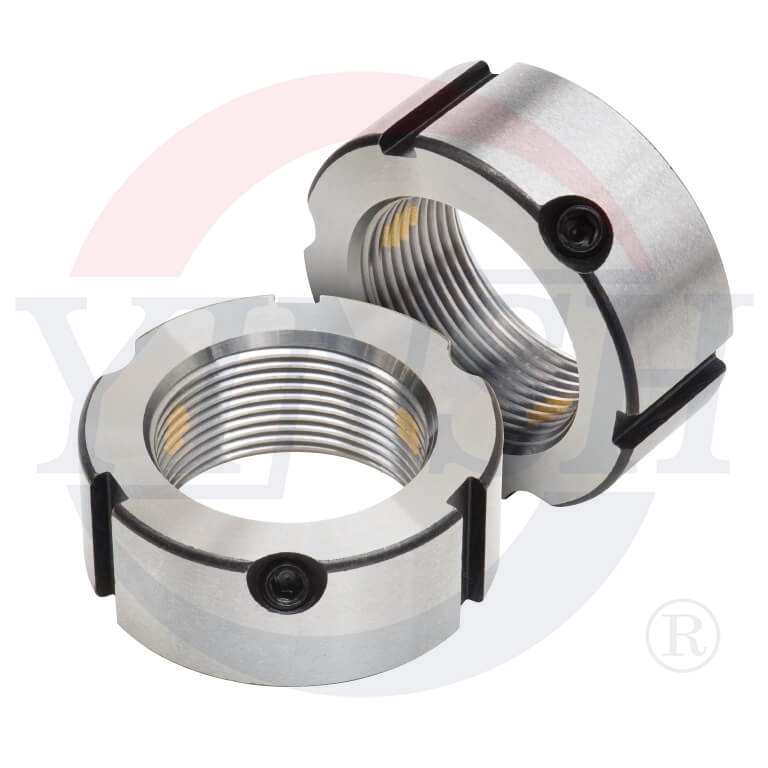

SGL-K Clasp Locking. The SGL-K Series locknuts utilize the elasticity of the steel body itself, axial locking, and forced locking. With locking capabilities more than three times higher compared to traditional locknuts, this series is aimed at harsh working conditions where locknuts are easily loosened. Locknut threads, clamping rims, trailing rims, and outer skirts are all precision ground to conform to the high precision requirements of high rpms.

More
  • Material Composition:SCM440(42CrMo4)

  • Hardness:HRC28° ~32°

  • Thread Precision:ISO 4H

  • Parallelism: 0.002mm

  • Run Out:0.002mm

  • Concentricity:0.005mm



SGL-R SGL-R
  • Material Composition:SCM440(42CrMo4)

  • Hardness:HRC28° ~32°

  • Thread Precision:ISO 4H

  • Parallelism: 0.002mm

  • Run Out:0.002mm

  • Concentricity:0.005mm



SGL-K SGL-K
Thread D h d n - m x L n b c MAX Nm CAD Download
SGL-K M16 x 1.5 34 18 29 4 - M4 x 12 4 4 24 3.5 x_t
SGL-K M17 x 1 37 18 32 4 - M4 x 12 4 4 26 3.5 x_t
SGL-K M18 x 1.5 38 18 33 4 - M4 x 12 4 4 28 3.5 x_t
SGL-K M20 x 1 40 18 35 4 - M4 x 12 4 4 30 3.5 x_t
SGL-K M20 x 1.5 40 18 35 4 - M4 x 12 4 4 30 3.5 x_t
SGL-K M22 x 1.5 42 18 37 4 - M4 x 12 4 4 32 3.5 x_t
SGL-K M24 x 1.5 44 18 39 4 - M4 x 12 4 4 34 3.5 x_t
SGL-K M25 x 1.5 45 20 40 4 - M4 x 14 4 5 35 3.5 x_t
SGL-K M26 x 1.5 45 20 40 4 - M4 x 14 4 5 35 3.5 x_t
SGL-K M28 x 1.5 46 20 43 4 - M4 x 14 4 5 37 3.5 x_t
SGL-K M30 x 1.5 48 20 45 4 - M4 x 14 4 5 39 3.5 x_t
SGL-K M32 x 1.5 50 22 47 4 - M4 x 16 4 5 41 3.5 x_t
SGL-K M35 x 1.5 53 22 50 4 - M4 x 16 4 5 44 3.5 x_t
SGL-K M38 x 1.5 56 22 53 4 - M4 x 16 4 5 47 3.5 x_t
SGL-K M40 x 1.5 58 22 55 4 - M4 x 16 4 5 49 3.5 x_t
SGL-K M42 x 1.5 60 22 55 4 - M4 x 16 4 5 51 3.5 x_t
SGL-K M45 x 1.5 68 22 63 6 - M4 x 18 6 6 57 3.5 x_t
SGL-K M48 x 1.5 69 25 65 6 - M4 x 18 6 6 58 3.5 x_t
SGL-K M50 x 1.5 70 25 66 6 - M4 x 18 6 6 60 3.5 x_t
SGL-K M52 x 1.5 72 25 68 6 - M4 x 18 6 6 62 3.5 x_t
SGL-K M55 x 1.5 75 25 71 6 - M4 x 18 6 6 65 3.5 x_t
SGL-K M55 x 2 75 25 71 6 - M4 x 18 6 6 65 3.5 x_t
SGL-K M58 x 1.5 82 26 77 6 - M5 x 20 6 6 70 4.5 x_t
SGL-K M60 x 1.5 84 26 79 6 - M5 x 20 6 6 72 4.5 x_t
SGL-K M60 x 2 84 26 79 6 - M5 x 20 6 6 72 4.5 x_t
SGL-K M62 x 1.5 86 28 82 6 - M5 x 20 6 6 75 4.5 x_t
SGL-K M65 x 1.5 88 28 84 6 - M5 x 20 6 6 77 4.5 x_t
SGL-K M65 x 2 88 28 84 6 - M5 x 20 6 6 77 4.5 x_t
SGL-K M68 x 1.5 93 28 87 6 - M5 x 20 6 7 80 4.5 x_t
SGL-K M70 x 1.5 95 28 89 6 - M5 x 20 6 7 82 4.5 x_t
SGL-K M70 x 2 95 28 89 6 - M5 x 20 6 7 82 4.5 x_t
SGL-K M72 x 1.5 97 28 91 6 - M5 x 20 6 7 84 4.5 x_t
SGL-K M75 x 1.5 100 28 94 6 - M5 x 20 6 7 87 4.5 x_t
SGL-K M75 x 2 100 28 94 6 - M5 x 20 6 7 87 4.5 x_t
SGL-K M80 x 2 110 32 103 6 - M6 x 22 6 8 95 8 x_t
SGL-K M85 x 2 115 32 108 6 - M6 x 22 6 8 100 8 x_t
SGL-K M90 x 2 120 32 113 6 - M6 x 22 6 8 105 8 x_t
SGL-K M95 x 2 125 32 118 6 - M6 x 22 6 8 110 8 x_t
SGL-K M100 x 2 130 32 123 6 - M6 x 22 6 8 115 8 x_t
SGL-K M105 x 2 135 32 128 6 - M6 x 22 6 8 120 8 x_t
SGL-K M110 x 2 140 32 133 6 - M6 x 22 6 8 125 8 x_t
SGL-K M115 x 2 145 34 137 6 - M6 x 22 6 8 130 8 x_t
SGL-K M120 x 2 155 36 146 6 - M6 x 25 6 8 136 8 x_t
SGL-K M125 x 2 160 36 150 6 - M6 x 25 6 8 140 8 x_t
SGL-K M130 x 2 165 36 155 6 - M6 x 25 6 8 148 8 x_t
SGL-K M140 x 2 180 38 168 8 - M6 x 25 8 10 160 8 x_t
SGL-K M150 x 2 190 38 178 8 - M6 x 25 8 10 170 8 x_t
SGL-K M160 x 3 205 40 190 8 - M8 x 30 8 10 178 18 x_t
SGL-K M170 x 3 215 40 200 8 - M8 x 30 8 10 193 18 x_t
SGL-K M180 x 3 230 40 213 8 - M8 x 30 8 10 205 18 x_t
SGL-K M190 x 3 240 40 223 8 - M8 x 30 8 10 215 18 x_t
SGL-K M200 x 3 245 40 230 8 - M8 x 30 8 10 223 18 x_t
