精密平衡螺帽

請選擇項目
SBL-A

SBL-A

鎖緊方式為螺紋半角 30° 六點式鎖定。比三點式鎖定更為優異，能使六個固定銅平均完全契合於公螺紋上，使其防鬆效果更完美。螺帽本身內螺紋、端面、背面、外圓都經過精密研磨加工，降低其在高速旋轉下所可能產生的平衡問題和風切的噪音問題。

詳細介紹

  • 材質：SCM440(42CrMo4)調質

  • 螺紋精度：ISO 4H精密研磨

  • 平面偏擺：0.002mm

  • 硬度：HRC 48° ~ 52°

  • 平行度：0.002mm

  • 同心度：0.005mm



SBL-A SBL-A
Thread D h d UxV C F mxn MAX Nm Loosening Torque Nm CAD Download
SBL-A
M20x1		 38 16 33 ø4.3x3 13 5 M5x6 4.5 28.9 x_t
SBL-A
M20x1.5		 M6x6 8.0 x_t
SBL-A
M25x1.5		 18 16 30.4 x_t
SBL-A
M30x1.5		 45 40 19 32.4 x_t
SBL-A
M35x1.5		 52 47 22 M8x6 18.0 39.2 x_t
SBL-A
M40x1.5		 58 20 52 25 46.1 x_t
SBL-A
M45x1.5		 65 59 28 61.8 x_t
SBL-A
M50x1.5		 70 64 30 70.6 x_t
SBL-A
M55x2		 75 22 68 33 88.2 x_t
SBL-A
M60x2		 80 73 ø5.3x3 35 6 98.0 x_t
SBL-A
M65x2		 85 78 38 127.5 x_t
SBL-A
M70x2		 92 24 84 41 147.1 x_t
SBL-A
M75x2		 98 90 43 152.0 x_t
SBL-A
M80x2		 105 96 46 156.9 x_t
SBL-A
M85x2		 110 102 ø6.4x3 49 7 176.5 x_t
SBL-A
M90x2		 120 26 108 53 186.3 x_t
SBL-A
M95x2		 125 113 55 201.0 x_t
SBL-A
M100x2		 130 118 58 220.6 x_t
SBL-A
M105x2		 140 28 125 61 M10x6 35.0 236.3 x_t
SBL-A
M110x2		 145 132 64 252.0 x_t
SBL-A
M115x2		 150 137 66 268.1 x_t
SBL-A
M120x2		 155 30 142 69 279.4 x_t
SBL-A
M125x2		 160 147 71 289.2 x_t
SBL-A
M130x2		 165 152 74 313.7 x_t
SBL-A
M135x2		 175 32 160 78 352.9 x_t
SBL-A
M140x2		 180 165 80 392.2 x_t
SBL-A
M145x2		 190 175 84 436.3 x_t
SBL-A
M150x2		 195 180 86 480.4 x_t
SBL-B

SBL-B

此型螺帽較 SBL-A螺帽不同在於螺帽本身背面增加了可調整的平衡螺絲孔，可解決高速主軸在調校平衡的不方便和精度。本設計再配合公司所開發的消音螺絲將其平衡螺絲孔塞住，可完全降低高速所帶來的噪音問題。和風切的噪音問題。

詳細介紹

  • 材質：SCM440(42CrMo4)調質

  • 螺紋精度：ISO 4H精密研磨

  • 平面偏擺：0.002mm

  • 硬度：HRC 48° ~ 52°

  • 平行度：0.002mm

  • 同心度：0.005mm



SBL-B SBL-B
Thread D h d UxV C F mxn MAX Nm Loosening Torque Nm CAD Download
SBL-B
M20x1		 38 16 33 M4x6 13 10 M5x3 4.5 28.9 x_t
SBL-B
M20x1.5		 M6x3 8.0 x_t
SBL-B
M25x1.5		 18 16 12 30.4 x_t
SBL-B
M30x1.5		 45 40 M5x9 19 32.4 x_t
SBL-B
M35x1.5		 52 47 22 M8x3 18.0 39.2 x_t
SBL-B
M40x1.5		 58 20 52 M6x9 25 14 46.1 x_t
SBL-B
M45x1.5		 65 59 28 61.8 x_t
SBL-B
M50x1.5		 70 64 M6x
12		 30 M8x6 70.6 x_t
SBL-B
M55x2		 75 22 68 33 16 88.2 x_t
SBL-B
M60x2		 80 73 35 98.0 x_t
SBL-B
M65x2		 85 78 38 127.5 x_t
SBL-B
M70x2		 92 24 84 M8x
12		 41 18 147.1 x_t
SBL-B
M75x2		 98 90 43 152.0 x_t
SBL-B
M80x2		 105 96 46 156.9 x_t
SBL-B
M85x2		 110 102 49 176.5 x_t
SBL-B
M90x2		 120 26 108 53 20 186.3 x_t
SBL-B
M95x2		 125 113 55 201.0 x_t
SBL-B
M100x2		 130 118 58 220.6 x_t
SBL-B
M105x2		 140 28 125 61 22 M10x6 35.0 236.3 x_t
SBL-B
M110x2		 145 132 64 252.0 x_t
SBL-B
M115x2		 150 137 66 268.1 x_t
SBL-B
M120x2		 155 30 142 69 24 279.4 x_t
SBL-B
M125x2		 160 147 71 289.2 x_t
SBL-B
M130x2		 165 152 74 313.7 x_t
SBL-B
M135x2		 175 32 160 78 26 352.9 x_t
SBL-B
M140x2		 180 165 80 392.2 x_t
SBL-B
M145x2		 190 175 84 436.3 x_t
SBL-B
M150x2		 195 180 86 480.4 x_t
SBL-C

SBL-C

此型螺帽較 SBL-A螺帽不同在於螺帽本身外圓增加了可調整的平衡螺絲孔，當主軸設計無法使用 SBL-B型時，此型螺帽是最佳的代替品。本設計再配合公司所開發的消音螺絲將其平衡螺絲孔塞住，可完全降低高速所帶來的噪音問題。

詳細介紹

  • 材質：SCM440(42CrMo4)調質

  • 螺紋精度：ISO 4H精密研磨

  • 平面偏擺：0.002mm

  • 硬度：HRC 48° ~ 52°

  • 平行度：0.002mm

  • 同心度：0.005mm

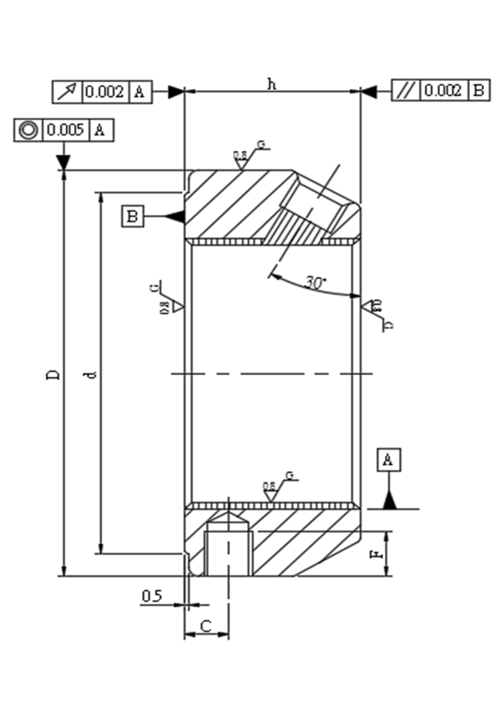

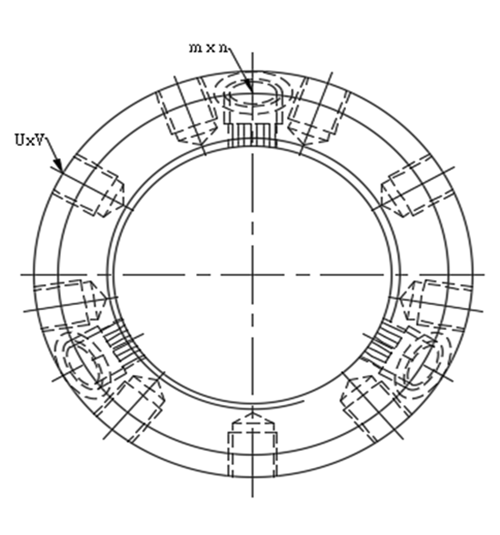

SBL-C SBL-C
Thread D h d UxV C F mxn MAX Nm Loosening Torque Nm CAD Download
SBL-C
M20x1		 38 16 33 M5x6 4 5 M5x3 4.5 28.9 x_t
SBL-C
M20x1.5		 M6x3 8.0 x_t
SBL-C
M25x1.5		 18 4.5 4 30.4 x_t
SBL-C
M30x1.5		 45 40 M5x9 5 32.4 x_t
SBL-C
M35x1.5		 52 47 M8x3 18.0 39.2 x_t
SBL-C
M40x1.5		 58 20 52 M6x9 5 46.1 x_t
SBL-C
M45x1.5		 65 59 6 61.8 x_t
SBL-C
M50x1.5		 70 64 M6x
12		 M8x6 70.6 x_t
SBL-C
M55x2		 75 22 68 5.5 88.2 x_t
SBL-C
M60x2		 80 73 98.0 x_t
SBL-C
M65x2		 85 78 127.5 x_t
SBL-C
M70x2		 92 24 84 M8x
12		 6 7 147.1 x_t
SBL-C
M75x2		 98 90 152.0 x_t
SBL-C
M80x2		 105 96 8 156.9 x_t
SBL-C
M85x2		 110 102 176.5 x_t
SBL-C
M90x2		 120 26 108 6.5 9 186.3 x_t
SBL-C
M95x2		 125 113 201.0 x_t
SBL-C
M100x2		 130 118 220.6 x_t
SBL-C
M105x2		 140 28 125 7 11 M10x6 35.0 236.3 x_t
SBL-C
M110x2		 145 132 252.0 x_t
SBL-C
M115x2		 150 137 268.1 x_t
SBL-C
M120x2		 155 30 142 7.5 279.4 x_t
SBL-C
M125x2		 160 147 289.2 x_t
SBL-C
M130x2		 165 152 313.7 x_t
SBL-C
M135x2		 175 32 160 8 14 352.9 x_t
SBL-C
M140x2		 180 165 392.2 x_t
SBL-C
M145x2		 190 175 16 436.3 x_t
SBL-C
M150x2		 195 180 480.4 x_t
SBL-D

SBL-D

鎖定方式為徑向三點(M45以下)和徑向六點式鎖定(M50以上)其厚度相較其他產品為薄，適用於螺帽厚度空間受到限制無使用其他產品的情況。 螺帽本身背面增加了平衡螺絲孔，可解決高速主軸在調校平衡的不方便和精度，配合消音螺絲可降低高速所帶來的噪音問題。

詳細介紹

  • 材質：SCM440(42CrMo4)調質

  • 螺紋精度：ISO 4H精密研磨

  • 平面偏擺：0.002mm

  • 硬度：HRC 48° ~ 52°

  • 平行度：0.002mm

  • 同心度：0.005mm



SBL-D SBL-D
Thread D h d UxV C F mxn MAX Nm Loosening Torque Nm CAD Download
SBL-D
M20x1		 32 10 27 M4x6 13 5 M5x3 4.5 24.0 x_t
SBL-D
M20x1.5		 x_t
SBL-D
M25x1.5		 38 12 33 16 6 M6x3 8.0 26.5 x_t
SBL-D
M30x1.5		 45 40 M5x9 19 28.4 x_t
SBL-D
M35x1.5		 52 47 22 34.3 x_t
SBL-D
M40x1.5		 58 14 52 M6x9 25 8 36.3 x_t
SBL-D
M45x1.5		 65 59 28 56.9 x_t
SBL-D
M50x1.5		 70 64 M6x
12		 30 M8x6 18.0 63.7 x_t
SBL-D
M55x2		 75 16 68 33 10 68.6 x_t
SBL-D
M60x2		 80 73 35 96.1 x_t
SBL-D
M65x2		 85 78 38 112.7 x_t
SBL-D
M70x2		 92 18 84 M8x
12		 41 12 137.3 x_t
SBL-D
M75x2		 98 90 43 145.1 x_t
SBL-D
M80x2		 105 96 46 149.0 x_t
SBL-D
M85x2		 110 102 49 168.6 x_t
SBL-D
M90x2		 120 20 108 53 14 178.4 x_t
SBL-D
M95x2		 125 113 55 193.1 x_t
SBL-D
M100x2		 130 118 58 210.8 x_t
SBL-D
M105x2		 140 22 125 61 16 215.7 x_t
SBL-D
M110x2		 145 132 64 230.4 x_t
SBL-D
M115x2		 150 137 66 250.0 x_t
SBL-D
M120x2		 155 24 142 69 18 264.7 x_t
SBL-D
M125x2		 160 147 71 274.5 x_t
SBL-D
M130x2		 165 152 74 294.1 x_t
SBL-D
M135x2		 175 26 160 78 20 M10x6 35.0 328.4 x_t
SBL-D
M140x2		 180 165 80 372.5 x_t
SBL-D
M145x2		 190 175 84 402.0 x_t
SBL-D
M150x2		 195 180 86 421.6 x_t
SBL-E

SBL-E

此型螺帽不同於SBL-D型螺帽在於其平衡螺絲孔位於螺帽外圓，當平衡調整無法從背面調整時，此型為最佳的代替品，配合消音螺絲，可降低高速所帶來的噪音問題。

詳細介紹

  • 材質：SCM440(42CrMo4)調質

  • 螺紋精度：ISO 4H精密研磨

  • 平面偏擺：0.002mm

  • 硬度：HRC 48° ~ 52°

  • 平行度：0.002mm

  • 同心度：0.005mm



SBL-E SBL-E
Thread D h d UxV C F mxn MAX Nm Loosening Torque Nm CAD Download
SBL-E
M20x1		 32 10 27 M5x6 5 3 M5x3 4.5 24.0 x_t
SBL-E
M20x1.5		 x_t
SBL-E
M25x1.5		 38 12 33 6 M6x3 8.0 26.5 x_t
SBL-E
M30x1.5		 45 40 4 28.4 x_t
SBL-E
M35x1.5		 52 47 M5x9 34.3 x_t
SBL-E
M40x1.5		 58 14 52 M6x9 7 5 36.3 x_t
SBL-E
M45x1.5		 65 59 6 56.9 x_t
SBL-E
M50x1.5		 70 64 M6x
12		 M8x6 18.0 63.7 x_t
SBL-E
M55x2		 75 16 68 8 68.6 x_t
SBL-E
M60x2		 80 73 96.1 x_t
SBL-E
M65x2		 85 78 112.7 x_t
SBL-E
M70x2		 92 18 84 M8x
12		 9 137.3 x_t
SBL-E
M75x2		 98 90 145.1 x_t
SBL-E
M80x2		 105 96 8 149.0 x_t
SBL-E
M85x2		 110 102 168.6 x_t
SBL-E
M90x2		 120 20 108 10 9 178.4 x_t
SBL-E
M95x2		 125 113 193.1 x_t
SBL-E
M100x2		 130 118 210.8 x_t
SBL-E
M105x2		 140 22 125 11 11 215.7 x_t
SBL-E
M110x2		 145 132 230.4 x_t
SBL-E
M115x2		 150 137 250.0 x_t
SBL-E
M120x2		 155 24 142 12 264.7 x_t
SBL-E
M125x2		 160 147 274.5 x_t
SBL-E
M130x2		 165 152 294.1 x_t
SBL-E
M135x2		 175 26 160 13 14 M10x6 35.0 328.4 x_t
SBL-E
M140x2		 180 165 372.5 x_t
SBL-E
M145x2		 190 175 16 402.0 x_t
SBL-E
M150x2		 195 180 421.6 x_t
消音螺絲

消音螺絲

消音螺絲其材質是PC纖維，其特性是質量輕、材質穩定。功能是能消除高速主軸，在高速運轉時其主體或配件平衡螺絲孔所產生的高頻噪音，亦能保持平衡螺絲孔的整潔，避免平衡孔生銹影響平衡精度，確保主軸壽命和精度。

詳細介紹

  •

  •



Noise Elimination Screw-in Plugs
Noise Elimination Screw-in Plugs (Option) Specifications A B C D Weight in Grams
M4 x P0.7 Ø4 2.5 1.0 0.6 0.025
M5 x P0.8 Ø5 3.0 1.0 0.6 0.045
M6 x P1 Ø6 3.0 1.0 0.6 0.075
M8 x P1.25 Ø8 3.5 1.0 0.6 0.165
